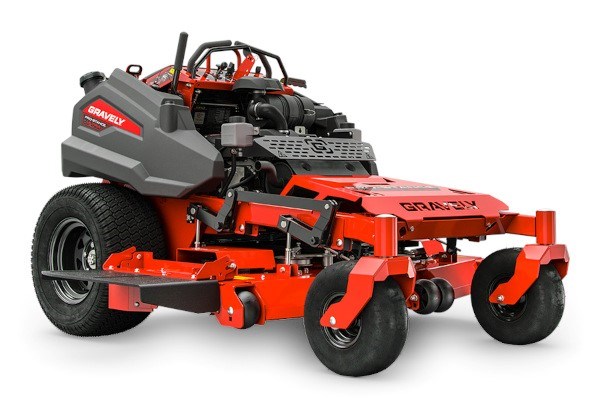

Gravely PRO-STANCE ULTRA,72 FX1000 EFI Model #994175

New Products / Ariens / Gravely / Stand-On / Pro-Stance® Ultra / PRO-STANCE ULTRA,72 FX1000 EFI Model #994175

Double tap to zoom

Features
Specifications

Features

ACCESS TO INTERNAL COMPONENTS

The contoured operator pad flips down providing service access for the internal components

SERVICEABLE SPINDLES

Cold-forged aluminum spindles provide the durability for commercial tasks

HIGH-CAPACITY FUEL TANK

Mow longer and drive efficiency with the ULTRA’s 16-gallon fuel tank.

Specifications

Model Number	994175
Power Train
Engine	Kawasaki® FX1000 EFI
Horsepower	38.5
Engine Displacement	999 in
Power Brand	Kawasaki®
Fuel System	Gas
Fuel Capacity	16 gal / 60.6 ltr
Drive System	Parker HTG
Transmission Type	HydroStatic
Brake Type	Lever Activated Parking
Driver Position	Stand
Ground Speed Forward	12.5 mph / 20.1 kph
Ground Speed Reverse	5 mph / 8 kph
Wheels Front	15.0 x 6.5 in - 6.0 in (38.1 x 16.5 cm - 38.1 cm)
Wheels Rear	24.0 x 12.0 in - 12.0 in (61.0 x 30.5 cm - 30.5 cm)
Deck
Deck Size	72 in / 182.9 cm
Coverage Hour	9 acres
Spindle Type	Mechanical
Deck Material	7 ga
Deck Construction	Fabricated X-Factor® 3
Discharge Configuration	Side
Cutting Height Min	1.5 in / 3.8 cm
Cutting Height Max	5.5 in / 14 cm
Cutting Width	72 in / 182.9 cm
Dimensions
Weight (assembled)	1440 lb
Length	72.5 in / 184.2 cm
Height	47.5 in / 120.7 cm
Width (Chute Up)	75 in / 190.5 cm
Width (Chute Down)	75 in / 190.5 cm
