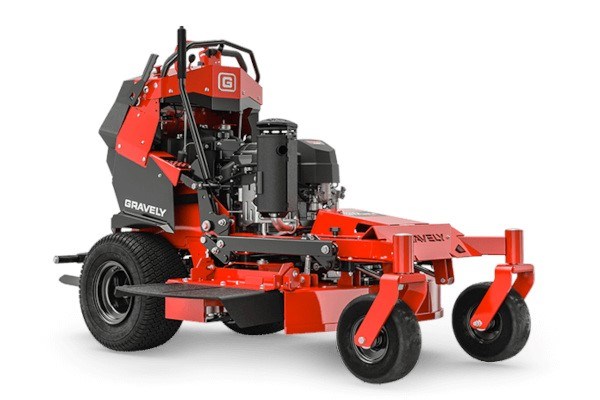

Gravely PRO-STANCE 36 KAWASAKI - Model #994149

New Products / Ariens / Gravely / Stand-On / Pro-Stance / PRO-STANCE 36 KAWASAKI - Model #994149

Double tap to zoom

Features
Specifications

Features

Height of Cut System

Less deck-lifting force, a thumb release and vertical pin system add ease to cutting height adjustments.

Adjustable Cruise Bar

Allows the operator to limit and expand the unit’s maximum speed in tight working environments.

Added Efficiency

Reduced complexity gives users the freedom to make critical adjustments in just minutes.

Specifications

MODEL NUMBER	994149
POWER TRAIN
ENGINE	Kawasaki® FS600V
HORSEPOWER	18.5
ENGINE DISPLACEMENT	36.8 in / 603 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	6 gal / 22.7 ltr
DRIVE SYSTEM	Hydro-Gear® ZT-3100® Transaxles
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Stand
GROUND SPEED FORWARD	8 mph / 12.9 kph
GROUND SPEED REVERSE	3 mph / 4.8 kph
WHEELS FRONT	11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 12.7 cm)
WHEELS REAR	18.0 x 8.5 in - 8.0 in (45.7 x 21.6 cm - 20.3 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	36 in / 91.4 cm
COVERAGE HOUR	2.9 acres / 1.2 hectares
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1.5 in / 3.8 cm
CUTTING HEIGHT MAX	5 in / 12.7 cm
CUTTING WIDTH	36 in / 91.4 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	776 lb / 351.9 kg
LENGTH	64 In / 162.6 cm
WIDTH	36 in / 91.4 cm
WIDTH (CHUTE UP)	36.5 in / 92.7 cm
WIDTH (CHUTE DOWN)	49 in / 124.5 cm
