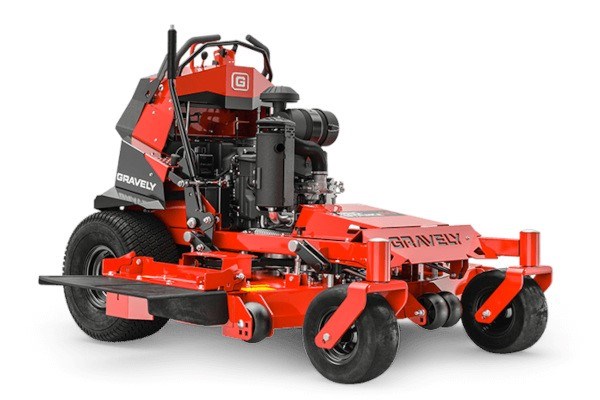

Gravely PRO-STANCE 60 KAWASAKI - Model #994164

New Products / Ariens / Gravely / Stand-On / Pro-Stance / PRO-STANCE 60 KAWASAKI - Model #994164

Double tap to zoom

Features
Specifications
Accessories/Attachments

Features

Height of Cut System

Less deck-lifting force, a thumb release and vertical pin system add ease to cutting height adjustments.

Adjustable Cruise Bar

Allows the operator to limit and expand the unit’s maximum speed in tight working environments.

Added Efficiency

Reduced complexity gives users the freedom to make critical adjustments in just minutes.

Specifications

MODEL NUMBER	994164
POWER TRAIN
ENGINE	Kawasaki® FX730V
HORSEPOWER	23.5
ENGINE DISPLACEMENT	44.3 in / 725.9 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	9 gal / 34.1 ltr
DRIVE SYSTEM	Hydro-Gear® ZT-3400 Transaxles
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Stand
GROUND SPEED FORWARD	9 mph / 14.5 kph
GROUND SPEED REVERSE	4 mph / 6.4 kph
WHEELS FRONT	13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
WHEELS REAR	20.0 x 10.5 in - 8.0 in (50.8 x 26.7 cm - 20.3 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	60 in / 152.4 cm
COVERAGE HOUR	5.4 acres / 2.2 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1.5 in / 3.8 cm
CUTTING HEIGHT MAX	5 in / 12.7 cm
CUTTING WIDTH	60 in / 152.4 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	940 lb / 426.3 kg
LENGTH	63 In / 160 cm
WIDTH	60 in / 152.4 cm
WIDTH (CHUTE UP)	63 in / 160 cm
WIDTH (CHUTE DOWN)	75.3 in / 191.1 cm
