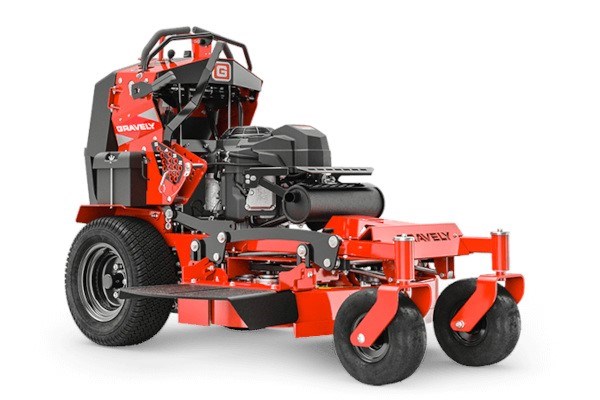

Gravely Z-STANCE 32 KAWASAKI - Model #994160

New Products / Ariens / Gravely / Stand-On / Z-Stance / Z-STANCE 32 KAWASAKI - Model #994160

Double tap to zoom

Features
Specifications

Features

ADJUSTABLE CRUISE BAR

Easily limit and expand the machine’s maximum speed in tight working environments.

LOW CENTER OF GRAVITY

Weight is distributed better to give you hillside stability and confidence in your ride.

FLIP-UP SUSPENSION PLATFORM

The flip-up suspension platform lets you stand comfortably all day or easily transition to a walk-behind and get some steps in.

Specifications

MODEL NUMBER	994160
POWER TRAIN
ENGINE	Kawasaki® FS600V
HORSEPOWER	18.5
ENGINE DISPLACEMENT	36.8 in / 603 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	4.5 gal / 17 ltr
DRIVE SYSTEM	Hydro-Gear® ZT-3100® Transaxles
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Stand
GROUND SPEED FORWARD	7 mph / 11.3 kph
GROUND SPEED REVERSE	3 mph / 4.8 kph
WHEELS FRONT	11.0 x 5.0 in - 6.0 in (27.9 x 12.7 cm - 15.2 cm)
WHEELS REAR	20.0 x 6.5 in - 8.0 in (50.8 x 16.5 cm - 20.3 cm)
ELECTRIC
CHARGER TYPE	Standard
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	32 in / 81.3 cm
COVERAGE HOUR	2.2 acres / 0.9 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor ® II
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	2 in / 5.1 cm
CUTTING HEIGHT MAX	5 in / 12.7 cm
CUTTING WIDTH	32 in / 81.3 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	669 lb / 303.4 kg
LENGTH	65.5 In / 166.4 cm
WIDTH	32 in / 81.3 cm
WIDTH (CHUTE UP)	32.8 in / 83.3 cm
WIDTH (CHUTE DOWN)	44.8 in / 113.8 cm
