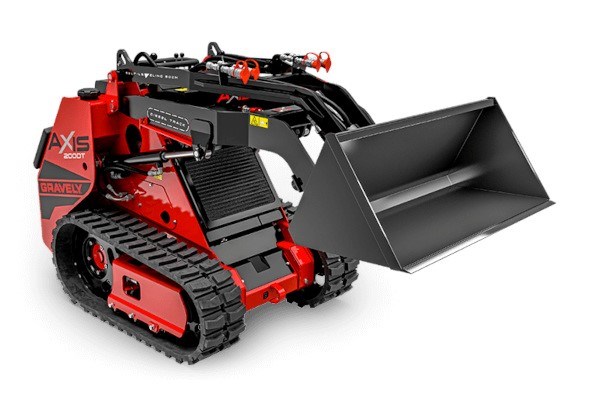

Gravely AXIS® 200DT - Model #950010

Double tap to zoom



Features

Powerful Diesel Engines

Models feature the Kubota® D1105 25 HP Diesel.

Dual Lift Cylinder Arms

Strong and self-leveling, they can lift up to 631 lbs. with a tipping load of up to 1,262 lbs.

Tires or Tracks

Models options include big 18 x 8.5 x 8 bar style tires or embedded steel rubber tracks that come in 7" or 9" tracks.

Specifications

MODEL NUMBER 950010
POWER TRAIN
ENGINE Kubota® D1105-E3B
HORSEPOWER 25
FUEL CAPACITY 10 gal / 37.9 ltr
DRIVER POSITION Stand
GROUND SPEED FORWARD 3.5 mph / 5.6 kph
PAYLOAD
TIPPING CAPACITY 1397 lbs / 633.6 kg
MAX LIFT CAPACITY 489 lbs / 221.8 kg
DIMENSIONS
WEIGHT (ASSEMBLED) 2525 lb / 1145.1 kg
LENGTH 63.3 In / 160.8 cm
WIDTH 41.2 in / 104.6 cm
