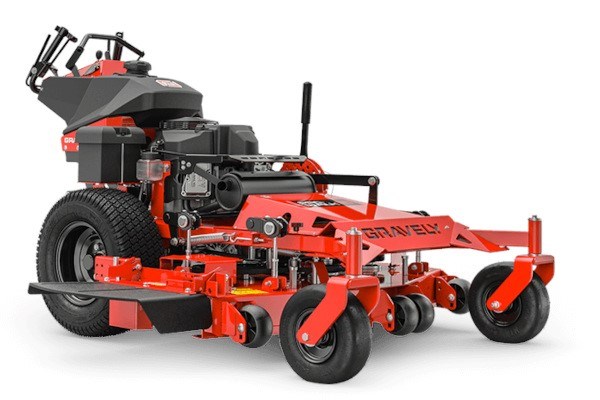

Gravely PRO-WALK® 48 KAWASAKI - Model #988185

New Products / Ariens / Gravely / Walk-Behind / PRO-WALK® / PRO-WALK® 48 KAWASAKI - Model #988185

Double tap to zoom

Features
Specifications

Features

Single-Point Height-of-Cut

Provides optimal cutting performance in 1/4-inch increments.

Intuitive Steering Controls

Offer a shortened learning curve while providing precision handling.

Wide Wheel Base

For superior hillside stability.

Specifications

MODEL NUMBER	988185
POWER TRAIN
ENGINE	Kawasaki® FS600V
HORSEPOWER	18.5
ENGINE DISPLACEMENT	36.8 in / 603 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	5.8 gal / 22 ltr
DRIVE SYSTEM	Hydro-Gear® ZT-2800® Transaxles
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Walk
GROUND SPEED FORWARD	8 mph / 12.9 kph
GROUND SPEED REVERSE	3 mph / 4.8 kph
WHEELS FRONT	11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 12.7 cm)
WHEELS REAR	20.0 x 8.0 in - 10.0 in (50.8 x 20.3 cm - 25.4 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	48 in / 121.9 cm
COVERAGE HOUR	3.8 acres / 1.5 hectares
DECK MATERIAL	10 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1.5 in / 3.8 cm
CUTTING HEIGHT MAX	5 in / 12.7 cm
CUTTING WIDTH	48 in / 121.9 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	740 lb / 335.6 kg
LENGTH	69 In / 175.3 cm
WIDTH	48 in / 121.9 cm
WIDTH (CHUTE UP)	50.1 in / 127.3 cm
WIDTH (CHUTE DOWN)	62.2 in / 158 cm
