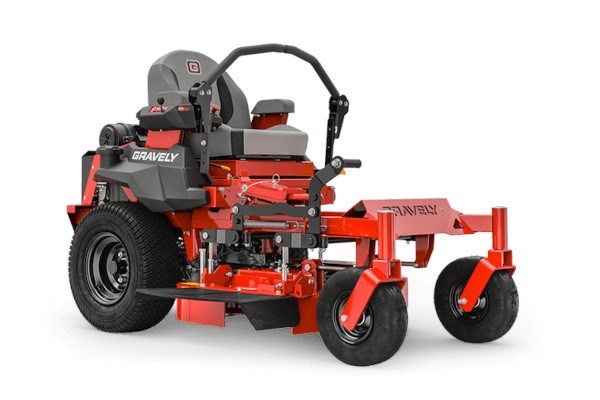

Gravely Compact-Pro 34 -KAWASAKI - 991088

New Products / Ariens / Gravely / Zero-Turn Mowers / COMPACT-PRO® / Compact-Pro 34 -KAWASAKI - 991088

Double tap to zoom

Features
Specifications

Features

Transmission

Built to perform season after season, the commercial-grade high-efficiency transmission design delivers responsive control and increased torque.

Fuel Tank Design

Increases stability and improves machine handling and visability.

Compact Design

The COMPACT PRO easily passes through gates as narrow as 36 inches and nimbly maneuvers around common residential obstacles.

Specifications

Model Number	991144
Power Train
Engine	Kawasaki® FX481V
Horsepower	15.5
Engine Displacement	36.8 in / 603 cc
Fuel System	Gas
Fuel Capacity	7.2 gal / 27.3 ltr
Drive System	Hydro-Gear® ZT-3100® Transaxles
Transmission Type	Hydrostatic
Brake Type	Lever Activated Parking
Driver Position	Sit
Ground Speed Forward	7 mph / 11.3 kph
Ground Speed Reverse	3 mph / 4.8 kph
Wheels Front	13.0 x 5.0 in - 6.0 in (33.0 x 12.7 cm - 33.0 cm)
Wheels Rear	21.0 x 7.0 in - 10.0 in (53.3 x 17.8 cm - 25.4 cm)
Electric
Battery Capacity	300 CCA
Battery Type	Lead Acid - Maintenance Free
Battery Size	U1
Deck
Deck Size	34 in / 86.4 cm
Coverage Hour	2.4 acres / 1 hectares
Deck Material	10 ga
Deck Construction	Fabricated X-Factor® 3
Discharge Configuration	Side
Cutting Height Min	1 in / 2.5 cm
Cutting Height Max	5 in / 12.7 cm
Cutting Width	34 in / 86.4 cm
Dimensions
Width	34 in / 86.4 cm
