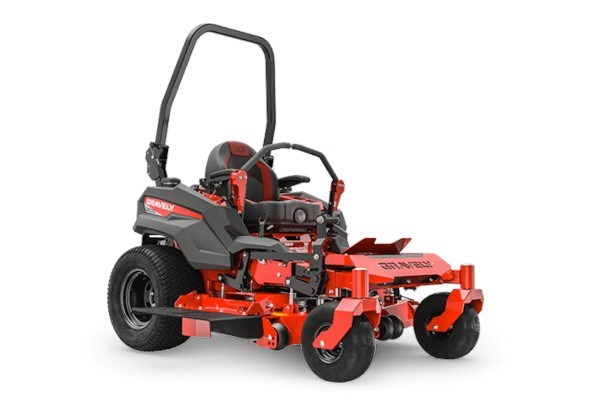

Gravely PRO-TURN 360 KAWASAKI EFI - Model #992523

New Products / Ariens / Gravely / Zero-Turn Mowers / PRO-TURN® 300 / PRO-TURN 360 KAWASAKI EFI - Model #992523

Double tap to zoom

Features
Specifications

Features

Comfortable Seat

High back seat has lumbar support and padded armrests. Red double stitching gives a high-end look with black, dark grey, and red accents.

Fully Welded Tubular Frame

Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement.

Parker HTJ Transaxles

They have a 12cc pump and deliver a top speed of 11mph. Filters are easily accessed from the rear for easy maintenance.

Specifications

Model Number:	992523
POWER TRAIN
ENGINE	Kawasaki® FT730V-EFI
HORSEPOWER	26
ENGINE DISPLACEMENT	726 in / 44.3 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	12.5 gal / 47.3 ltr
DRIVE SYSTEM	Parker® HTJ
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Sit
GROUND SPEED FORWARD	11 mph / 17.7 kph
GROUND SPEED REVERSE	5 mph / 8 kph
WHEELS FRONT	15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 15.2 cm)
WHEELS REAR	24.0 x 12.0 in - 12.0 in (61.0 x 30.5 cm - 30.5 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	60 in / 152.4 cm
COVERAGE HOUR	6.6 acres / 2.7 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1 in / 2.5 cm
CUTTING HEIGHT MAX	5.5 in / 14 cm
CUTTING WIDTH	60 in / 152.4 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	1347 lb / 610.9 kg
LENGTH	83 In / 210.8 cm
WIDTH	60 in / 152.4 cm
WIDTH (CHUTE UP)	63 in / 160 cm
WIDTH (CHUTE DOWN)	75 in / 190.5 cm
