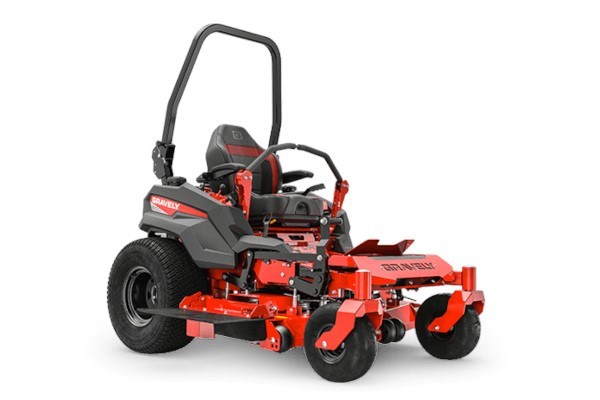

Gravely PRO-TURN 552 KAWASAKI - Model #992510

New Products / Ariens / Gravely / Zero-Turn Mowers / PRO-TURN® 500 / PRO-TURN 552 KAWASAKI - Model #992510

Double tap to zoom

Features
Specifications

Features

Comfortable Seat

Isolated mounting absorbs more shock while the high-back seat with lumbar support and padded armrests deliver cushioned comfort.

Fully Welded Tubular Frame

Rugged and strong, its wide front rail distributes weight for superior balance.

Parker HTG Transaxles

Parker HTG transaxles deliver a top speed of 15mph and have a 16cc pump. Filters are easily accessed from the rear for maintenance.

Specifications

Model Number:	992510
POWER TRAIN
ENGINE	Kawasaki® FX850V
HORSEPOWER	27
ENGINE DISPLACEMENT	52 in / 852 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	12.5 gal / 47.3 ltr
DRIVE SYSTEM	Hydrostatic
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Sit
GROUND SPEED FORWARD	15 mph / 24.1 kph
GROUND SPEED REVERSE	6 mph / 9.7 kph
WHEELS FRONT	15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 15.2 cm)
WHEELS REAR	26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	52 in / 132.1 cm
COVERAGE HOUR	7.8 acres / 3.2 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1 in / 2.5 cm
CUTTING HEIGHT MAX	5.5 in / 14 cm
CUTTING WIDTH	52 in / 132.1 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	1447 lb / 656.2 kg
LENGTH	84 In / 213.4 cm
WIDTH	52 in / 132.1 cm
WIDTH (CHUTE UP)	51 in / 129.5 cm
WIDTH (CHUTE DOWN)	63 in / 160 cm
