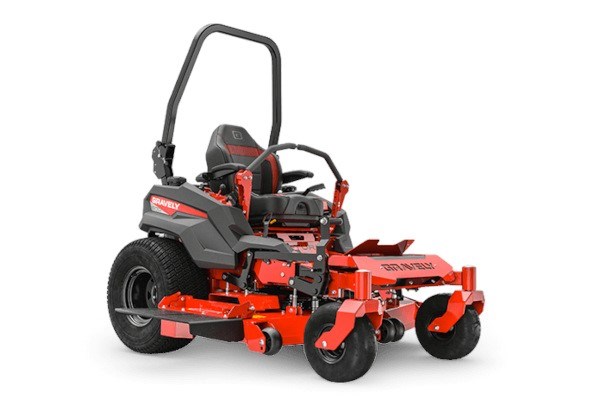

Gravely PRO-TURN 560 KAWASAKI - Model #992511

New Products / Ariens / Gravely / Zero-Turn Mowers / PRO-TURN® 500 / PRO-TURN 560 KAWASAKI - Model #992511

Double tap to zoom

Features
Specifications

Features

Comfortable Seat

Isolated mounting absorbs more shock while the high-back seat with lumbar support and padded armrests deliver cushioned comfort.

Fully Welded Tubular Frame

Rugged and strong, its wide front rail distributes weight for superior balance.

Parker HTG Transaxles

Parker HTG transaxles deliver a top speed of 15mph and have a 16cc pump. Filters are easily accessed from the rear for maintenance.

Specifications

Model Number:	992511
POWER TRAIN
ENGINE	Kawasaki® FX921V
HORSEPOWER	31
ENGINE DISPLACEMENT	61 in / 999 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	12.5 gal / 47.3 ltr
DRIVE SYSTEM	Hydrostatic
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Sit
GROUND SPEED FORWARD	15 mph / 24.1 kph
GROUND SPEED REVERSE	6 mph / 9.7 kph
WHEELS FRONT	15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 15.2 cm)
WHEELS REAR	26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	60 in / 152.4 cm
COVERAGE HOUR	9 acres / 3.6 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1 in / 2.5 cm
CUTTING HEIGHT MAX	5.5 in / 14 cm
CUTTING WIDTH	60 in / 152.4 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	1487 lb / 674.4 kg
LENGTH	84 In / 213.4 cm
WIDTH	60 in / 152.4 cm
WIDTH (CHUTE UP)	63 in / 160 cm
WIDTH (CHUTE DOWN)	75 in / 190.5 cm
