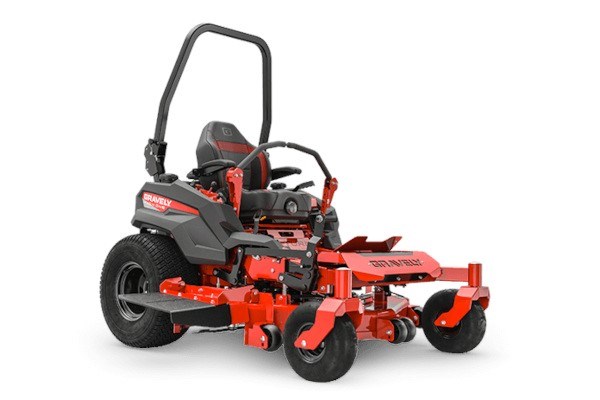

Gravely PRO-TURN MACH ONE KAWASAKI - Model #992515

New Products / Ariens / Gravely / Zero-Turn Mowers / Pro-Turn® Mach One / PRO-TURN MACH ONE KAWASAKI - Model #992515

Double tap to zoom

Features
Specifications

Features

Integrated Seat Isolators

Bumps and engine vibration are smoothed out thanks to vibration-absorbing dampers.

Fully Welded Tubular Frame

Strength and durability are on display with its closed tube frame rails and fully welded construction.

High-Volume Output (HVO) Deck

The HVO deck provides increased depth from trim side to discharge side so it can process greater material volume.

Fully Welded Tubular Frame

Strength and durability are on display with its closed tube frame rails and fully welded construction.

Integrated Seat Isolators

Bumps and engine vibration are smoothed out thanks to vibration-absorbing dampers.

Specifications

Model Number:	992515
POWER TRAIN
ENGINE	Kawasaki® FX921V
HORSEPOWER	31
ENGINE DISPLACEMENT	61 in / 999 cc
FUEL SYSTEM	Gas
FUEL CAPACITY	12.5 gal / 47.3 ltr
DRIVE SYSTEM	Hydrostatic
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Sit
GROUND SPEED FORWARD	15 mph / 24.1 kph
GROUND SPEED REVERSE	6 mph / 9.7 kph
WHEELS FRONT	15.0 x 6.0 in - 6.0 in (38.1 x 15.2 cm - 15.2 cm)
WHEELS REAR	26.0 x 12.0 in - 12.0 in (66.0 x 30.5 cm - 30.5 cm)
ELECTRIC
BATTERY CAPACITY	300 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	Lead Acid - Maintenance Free
BATTERY SIZE	U1
DECK
DECK SIZE	60 in / 152.4 cm
COVERAGE HOUR	9 acres / 3.6 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1 in / 2.5 cm
CUTTING HEIGHT MAX	5.5 in / 14 cm
CUTTING WIDTH	60 in / 152.4 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	1486 lb / 673.9 kg
LENGTH	86.2 In / 218.9 cm
WIDTH	60 in / 152.4 cm
WIDTH (CHUTE UP)	61.6 in / 156.5 cm
WIDTH (CHUTE DOWN)	75 in / 190.5 cm
