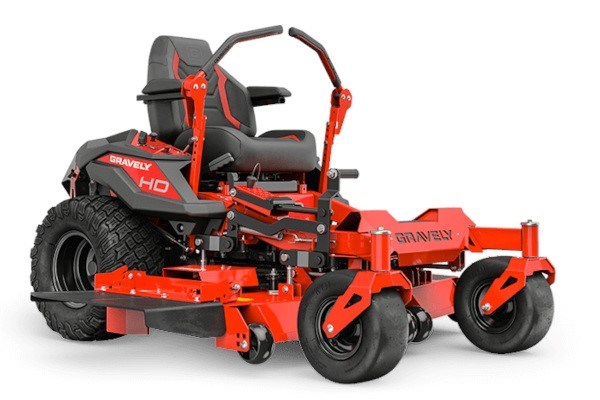

Gravely ZT HD 48 KAWASAKI - Model #991269

New Products / Ariens / Gravely / Zero-Turn Mowers / ZT HD / ZT HD 48 KAWASAKI - Model #991269

Double tap to zoom

Features
Specifications

Features

X-Factor® III Fabricated Deck

7-gauge steel and specially designed for better grass dispersion thanks to its larger discharge opening, integrated baffles, and sloped front end.

Powerful Engine

Kawasaki® Engines are best-in-class and part of the trusted Kawasaki® FR line.

Fully Welded Tubular Frame

Automotive-style frame is constructed of enclosed rectangular tubing and is fully welded for superior durability.

Specifications

MODEL NUMBER	991269
POWER TRAIN
ENGINE	Kawasaki® FR691V
HORSEPOWER	23
ENGINE DISPLACEMENT	44.3 in / 726 cc
FUEL CAPACITY	5.1 gal / 19.3 ltr
DRIVE SYSTEM	Hydro-Gear® ZT-3100® Transaxles
TRANSMISSION TYPE	Hydrostatic
BRAKE TYPE	Lever Activated Parking
DRIVER POSITION	Sit
GROUND SPEED FORWARD	8 mph / 12.9 kph
GROUND SPEED REVERSE	4 mph / 6.4 kph
WHEELS FRONT	13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
WHEELS REAR	22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm)
ELECTRIC
BATTERY CAPACITY	190 CCA
NUMBER OF BATTERIES	1
BATTERY VOLTAGE	12
BATTERY TYPE	AGM
BATTERY SIZE	U1 Compatible
DECK
DECK SIZE	48 in / 121.9 cm
COVERAGE HOUR	3.8 acres / 1.5 hectares
SPINDLE TYPE	Mechanical
DECK MATERIAL	7 ga
DECK CONSTRUCTION	Fabricated X-Factor® 3
DISCHARGE CONFIGURATION	Side
CUTTING HEIGHT MIN	1.5 in / 3.8 cm
CUTTING HEIGHT MAX	5 in / 12.7 cm
CUTTING WIDTH	48 in / 121.9 cm
DIMENSIONS
WEIGHT (ASSEMBLED)	802 lb / 363.7 kg
LENGTH	79 In / 200.7 cm
WIDTH (CHUTE UP)	50.8 in / 129 cm
WIDTH (CHUTE DOWN)	61.9 in / 157.2 cm
