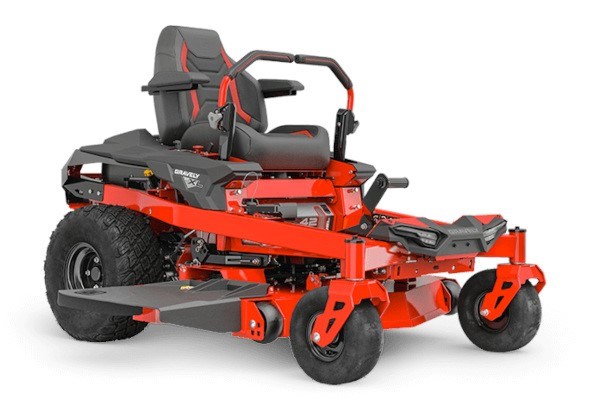

Gravely ZT XL 42 KAWASAKI - Model #918012

Double tap to zoom



Features

One-piece, Fully-Welded Tubular Chassis

This all-new chassis displays strength and durability with its closed tube frame rails and fully welded construction techniques influenced by our commercial applications.

New X-Factor® 11-gauge Fabricated Deck

Airflow is optimized in this all new 4 1/2 inch-deep deck. A reinforced sloped nose allows more room for grass to stand up ahead of the cutting chamber and caged anti-scalp wheels protect your lawn from minor bumps and scrapes.

New Taller and Wider Seat with Padded Armrests, Taller Seat Base

Ready for the long mow! A 22” tall seat provides more back support and is mounted on a taller seat base to make it easier to stand up and sit down. Armrests deliver extra cushion for more comfort.

Specifications

MODEL NUMBER918012
POWER TRAIN
ENGINEKawasaki® FR651V
HORSEPOWER21.5
ENGINE DISPLACEMENT44.3 in / 726 cc
FUEL SYSTEMGas
FUEL CAPACITY3.5 gal / 13.2 ltr
DRIVE SYSTEMHydro-Gear® ZT-2800® Transaxles
TRANSMISSION TYPEHydrostatic
BRAKE TYPEIntegrated Parking Brake
DRIVER POSITIONSit
GROUND SPEED FORWARD7 mph / 11.3 kph
GROUND SPEED REVERSE3 mph / 4.8 kph
WHEELS FRONT11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 12.7 cm)
WHEELS REAR20.0 x 8.0 in - 8.0 in (50.8 x 20.3 cm - 20.3 cm)
ELECTRIC
BATTERY CAPACITY190 CCA
NUMBER OF BATTERIES1
BATTERY VOLTAGE12
BATTERY TYPEAGM
BATTERY SIZEU1 Compatible
DECK
DECK SIZE42 in / 106.7 cm
COVERAGE HOUR2.9 acres / 1.2 hectares
SPINDLE TYPEMechanical
DECK MATERIAL11 ga
DECK CONSTRUCTIONFabricated X-Factor®
DISCHARGE CONFIGURATIONSide
CUTTING HEIGHT MIN1.5 in / 3.8 cm
CUTTING HEIGHT MAX4.5 in / 11.4 cm
CUTTING WIDTH42 in / 106.7 cm
DIMENSIONS
WEIGHT (ASSEMBLED)675 lb / 306.1 kg
LENGTH74.5 In / 189.2 cm
WIDTH (CHUTE UP)45.1 in / 114.6 cm
WIDTH (CHUTE DOWN)56.2 in / 142.7 cm
