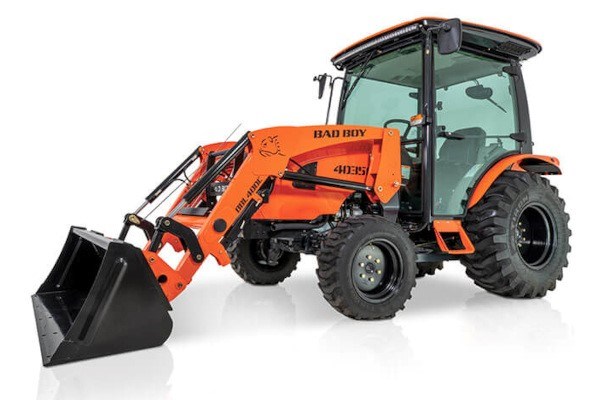

Bad Boy Mowers 4035 Cab Compact Tractor

Double tap to zoom



Features

Featuring:

  • 35 Horse Power
  • 2,200 lbs. Loader Lift Capacity At Pins
  • Metal Hood and Fenders
  • Cast Iron Axles
  • Factory Cab with Heat and Air Available

Additional Features

  • Easy to adjust pin style stablizers
  • Cruise Control
  • Hydro Max TransmissionDual HST Pedals
  • 3 Range Transmission
  • Independent PTO
  • Power Steering
  • Selectable 4wd
  • Differential Lock
  • 6 Year Powertrain Warranty

Work in Any Weather
The 4035 Series is available with or without a fully climate-controlled, all-weather cab. So bring on the rain, snow or blistering heat because nothing can stop you from working with an attitude.

Get More from Compact
The 4035 Series is the largest tractor in the Bad Boy Tractor stable with 35hp. The eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power and lifting up to 2,200 lbs.

Hydro Max Transmission
Say goodbye to pre-set engine throttle positions. The 4035 Series engine RPM automatically increases or decreases as you move the foot pedals. Hydro Max is quiet, smooth, easy and eco-smart.

Bad Boy Power
The 4035 Series Tractor is the big dog in the Bad Boy line-up. Our largest tractor is built to handle hard work and make getting any job done seem easier. It's equipped with an eco-friendly, “A” Series diesel engine that sips fuel but still sports 35-horsepower. The loader lifts up to 2200 lbs. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. This is the compact tractor that delivers oversized performance, strength and lifting power, all in one package.

Implements Make Quick Work
Of course, getting any job done right starts with a Bad Boy 40 Series Tractor. Our tough 3-point hitch and front loader quick attach and latch implements are built to Bad Boy's industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they're more than ready to pull their weight around your property. The Bad Boy line-up includes; Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They're built for a lifetime of work around the field and farm and make getting the job done quicker and easier.

Tough as Steel
The Bad Boy 4035 Compact Tractor is built Bad Boy tough. With a heavy-duty steel hood and fenders along with cast iron axles, this tractor can handle just about anything you throw its way. And since it's a Bad Boy, you get the same quality and dependability you've come to expect with all our products. That's why the 4035 Tractor comes with a 6-year powertrain warranty.

The Features that Drive You
Bad Boy's 4035 Tractor features our Hydro Max transmission, which automatically increases engine RPMs evenly with the push of a pedal. So no, you do not have to pre-set an engine throttle position with this Bad Boy. Smooth and quiet, this 3-range transmission can be set to low or medium for work or high for transport. The 4035 also comes with power steering and cruise control, so you can enjoy maximum performance with minimal effort.

You can also work in any kind of weather, thanks to the 4035's available climate-controlled, all-weather cab. It protects you from rain, snow, blistering sun and any other inclement weather. You can work with an attitude and still stay comfortable, all year long.

Specifications

4035 Engine
Engine3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM35
Displacement (in.)104.5
Number Of Cylinders3
Fuel Tank (gal.)7.1
4035 Drivetrain
TransmissionHST
Number Of Speeds3 Range
ClutchNo
BrakesWet, Multi-Disc
4035 Hydraulics
TypeHydro-Static Power Steering
Total Hydraulic Flow (Power Steering + Implement)12.6 (4.4+8.2)
3-Point HitchCat 1
Rear Remote ValveOptional (Up To 2)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point (lbs.)2,425
4035 Dimensions
Overall Length134.88"
Overall Width4035H - 56.7" | 4035CH - 55.6"
Overall Height104.06"
Wheelbase65.7"
Minimum Ground Clearance13.1"
Weight4035H - 3,164 lbs. | 4035CH - 3,551 lbs.
4035 PTO
TypeIndependent
Rear (Mid) PTO Speed540
PTO HP29.5
4035 Electrical
Battery12 V, 540 CCA
Alternator12 V, 50 A
4035 Wheels & Tires
IND (Front)28X8.50-15
IND (Rear)43X16.00-20
4035 Loader - Model BBL400
Standard Bucket Size (in.)62
Maximum Lift Height (in.)104
Dig Depth (in.)1.8
Lift Capacity To Full Height At Pivot Pin (lbs.)2,200
Breakout Force (lbs.)3,660
Shipping Weight (lbs.)1,007
4035 Backhoe - Model BBH400
Standard Bucket Size (in.)16
TypeSubframe-Mounted, Quick Attach
Maximum Dig Depth (in.)92.2
Dig Force Bucket (lbs.)4,380
Shipping Weight (lbs.)1,270
