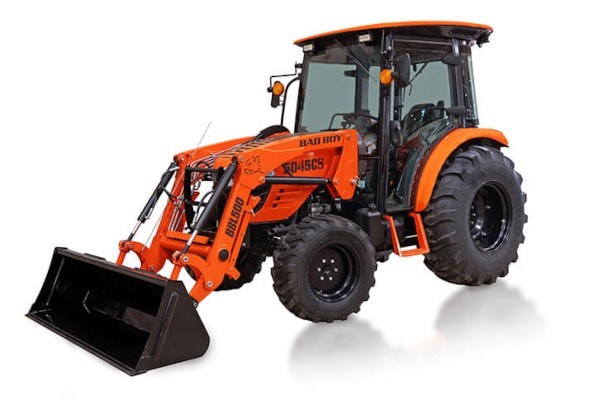

Bad Boy Mowers 5045 Cab Compact Utility Tractor

Double tap to zoom



Features

Featuring:

  • 48 Horse Power
  • 2,700 lbs. Loader Lift Capacity At Pins
  • Hydro Max or Shuttle Shift Transmission Option
  • Optional Climate-Controlled Cab with Leather, Heated Seat
  • Power Steering

Additional Features

  • Easy to Adjust Pin Style Stabilizer
  • Cruise Control
  • 4WD

Lift More Than Ever Before
The 5045 takes power, performance, and attitude to the next level with 2,700 lbs. Loader Lift Capacity.

A New Kind of Comfort
Combat fatigue during long workdays with our deluxe suspension seat. Feel the difference of a truly better ride.

Transmission Options
Choose between a Hydro Max Transmission or Shuttle Shift Transmission on all 50 Series models. You decide how you want to drive.

Choose Your Transmission
The Bad Boy 5045 Tractor lets you choose how you drive. You can opt for our Hydro Max Transmission, which automatically increases engine RPMs evenly with the push of a pedal. Or go with the Shuttle Shift Transmission, the ideal choice for quick, directional changes and maneuverability. Both options come with power steering and cruise control, so you can enjoy maximum performance with minimal effort.

More Power & More Load Capacity
The Bad Boy 5045 Series Tractor one of the big dogs in the Bad Boy tractor line-up. Powered by a 48-horsepower engine with a loader lift capacity of 2700 lbs., this tractor is built to handle the any type of job. If it’s pulling power you want, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. And you use our selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. The 5045 Tractor is Bad Boy performance, strength and lifting power, all in one orange package.

Implements Done Right
If you want to get work done quicker and easier, start with the Bad Boy 5045 Tractor. Our tough three-point hitch and front loader quick attach and latch implements are built to Bad Boy’s industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they’re more than ready to pull their weight around your property. The Bad Boy line-up includes; Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They’re built for a lifetime of work around the field and farm, just like this Bad Boy.

High-End, Heated Seat
As soon as you climb onto Bad Boy’s heated, leather seat, you’ll feel like royalty. It’s perfectly cushioned and supportive, so you can work with an attitude all day long. You can also choose to add the optional, climate-controlled cab around your throne and protect yourself from inclement weather, like heat, rain and snow. Either way, you’ll feel comfortable knowing you’re sitting atop a chariot of heavy-duty, Bad Boy steel. From the hood to the fenders to the cast iron axels, the 5045 is built with the same quality and dependability you’ve come to expect from Bad Boy. It even comes with a 6-year powertrain warranty.

Specifications

Dimensions5045CS5045CH
OVERALL LENGTH, IN, 3P127.4127.4
OVERALL WIDTH, IN64.964.9
HEIGHT TO TOP OF ROPS, IN9797
WHEELBASE, IN71.171.1
MIN. GROUND CLEARANCE, IN15.515.5
WEIGHT, LB4,3494,349
PTO5045CS5045CH
540, 540E584, 791584, 791
Hydrostatic5045CS5045CH
MAXIMUM TOTAL FLOW, GPM16.415.7
IMPLEMENT PUMP CAP, GPM11.410.7
STEERING PUMP CAP, GPM55
3P CATEGORY11
HITCH LIFT CAPACITY, LB33063306
AT 24 INCHES BEHIND LINK ENDS, LB24252425
Engine5045CS5045CH
MODELA2300N2-UTR_4A2300N2-UTR_4
FUEL SYSTEMWATER-COOLED DIESELWATER-COOLED DIESEL
DISPLACEMENT, IN139.5139.5
NUMBER OF CYLINDERS44
RATED ENGINE POWER, HP4848
RATED SPEED, RPM26002600
MAX PTO POWER, HP38.438.4
DPF / SCR / DOCDPF / DOCDPF / DOC
Transmission5045CS5045CH
TYPESYNCHROHST
NUMBER OF GEARS16F / 16R4 RANGE
