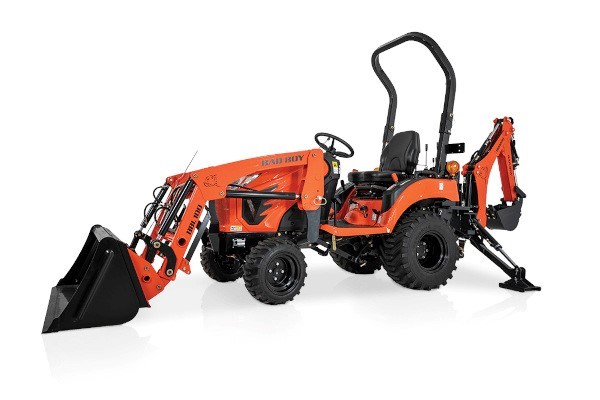

Bad Boy Mowers 1022 Sub-Compact Tractor
Double tap to zoom
1022 Sub-Compact Tractor
Sub-Compact Tractors
Overview:
Our powerful sub-compact tractor is small enough to go where bigger tractors can't and can still do the heavy lifting.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
FEATURING:
- 22 HORSEPOWER
- 617 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- TREADLE STYLE HST PEDALS
- REVERSE MOUNT ENGINE
ADDITIONAL FEATURES
- 2 RANGE TRANSMISSION
- INDEPENDENT PTO
- POWER STEERING
- SELECTABLE 4WD
- DIFFIRENTIAL LOCK
- 7 YEAR POWERTRAIN WARRANTY
Specifications
| 1022 Engine | |
| Engine | 3 Cylinder, Water-Cooled, Diesel |
| Engine HP @ RPM | 21.5 |
| Displacement (in.) | 60.6 |
| Number Of Cylinders | 3 |
| Fuel Tank (gal.) | 6.6 |
| 1022 Drivetrain | |
| Transmission | HST |
| Number Of Speeds | 2 Range |
| Clutch | Dry Single Plate |
| Brakes | Wet, Multi-Disc |
| 1022 Hydraulics | |
| Type | Power Assisted Hydro-Static |
| Total Hydraulic Flow (Power Steering + Implement) | 6.3 (2.1+4.2) / 23.8 (8+15.8) |
| 3-Point Hitch | Limited Cat 1 |
| Rear Remote Valve | Optional (Up To 1) |
| 3-Point Hitch Lift Capacity @ 24" Behind Lift Point (lbs.) | 679 |
| 1022 Dimensions | |
| Overall Length | 94.2" |
| Overall Width | 44.5" |
| Overall Height | 86.6" |
| Wheelbase | 53.1" |
| Minimum Ground Clearance | 8.3" |
| Weight | 1,433 lbs. |
| 1022 PTO | |
| Type | Independent |
| Rear (Mid) PTO Speed | 540 |
| PTO HP | 15.4 |
| 1022 Electrical | |
| Battery | 12 V, 500 CCA |
| Alternator | 12 V, 40 A |
| 1022 Wheels & Tires | |
| IND (Front) | 18X8.50-10 |
| IND (Rear) | 26X12-12 |
| 1022 Loader - Model BBL100 | |
| Standard Bucket Size (in.) | 48 |
| Maximum Lift Height (in.) | 72.7 |
| Dig Depth (in.) | 4 |
| Lift Capacity To Full Height At Pivot Pin (lbs.) | 617 |
| Breakout Force (lbs.) | 1,253 |
| Shipping Weight (lbs.) | 438 |
| 1022 Backhoe - Model BBH100 | |
| Standard Bucket Size (in.) | 12 |
| Type | Subframe-Mounted, Quick Attach |
| Maximum Dig Depth (in.) | 66 |
| Dig Force Bucket (lbs.) | 1,975 |
| Shipping Weight (lbs.) | 747 |
