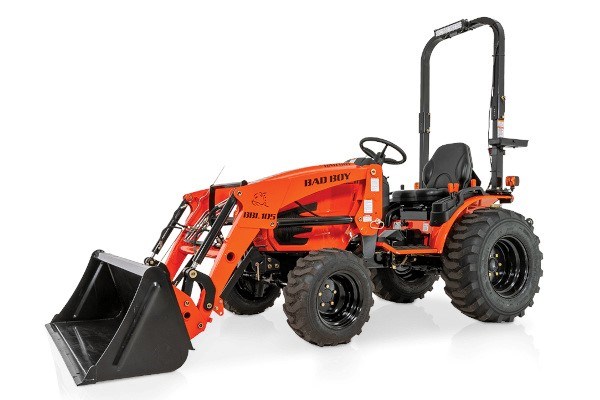

Bad Boy Mowers 1025 Sub-Compact Tractor

New Products / Bad Boy Mowers / Tractors / Sub-Compact Tractors / 1025 Sub-Compact Tractor

Double tap to zoom

FEATURING:

ADDITIONAL FEATURES

1025 Engine
Engine	3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM	24.6
Displacement (in.)	77.3
Number Of Cylinders	3
Fuel Tank (gal.)	5.8
1025 Drivetrain
Transmission	HST
Number Of Speeds	2 Range
Clutch	No
Brakes	Wet, Multi-Disc
1025 Hydraulics
Type	Power Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement)	7.0 (2.8+4.2) / 25.7 (10.5+15.8)
3-Point Hitch	Cat 1
Rear Remote Valve	N/A
3-Point Hitch Lift Capacity @ 24" Behind Lift Point (lbs.)	1101
1025 Dimensions
Overall Length	104"
Overall Width	45.8"
Overall Height	91.3"
Wheelbase	57.5"
Minimum Ground Clearance	9.4"
Weight	1,638 lbs.
1025 PTO
Type	Independent
Rear (Mid) PTO Speed	540
PTO HP	18.8
1025 Electrical
Battery	12 V, 500 CCA
Alternator	12 V, 40 A
1025 Wheels & Tires
IND (Front)	23X8.50-12
IND (Rear)	12-16.5
1025 Loader - Model BBL105
Standard Bucket Size (in.)	50
Maximum Lift Height (in.)	75.5
Dig Depth (in.)	4.6
Lift Capacity To Full Height At Pivot Pin (lbs.)	992
Breakout Force (lbs.)	1,531
Shipping Weight (lbs.)	573
1025 Backhoe - Model BBH105
Standard Bucket Size (in.)	12
Type	Subframe-Mounted, Quick Attach
Maximum Dig Depth (in.)	76
Dig Force Bucket (lbs.)	2,020
Shipping Weight (lbs.)	816
