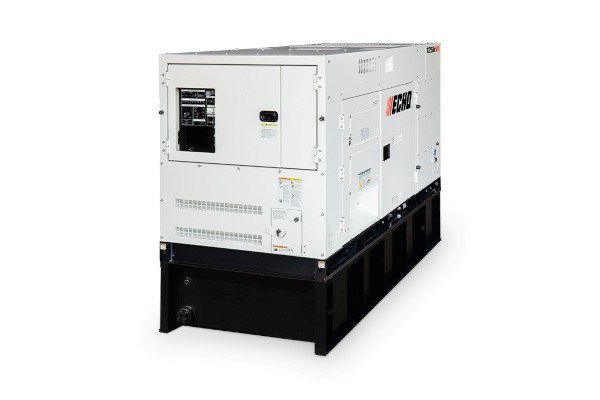

Echo DGK125F

Double tap to zoom



Features

NONSTOP POWER. POWERED BY ECHO.

Simul-Phase™ Technology

A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.

Priority Trip Breakers

Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.

S.E.T. Smart Emissions Technology™

Added protection during light or underloaded operation.

125 kVA Power Output

120/139/240V 1-phase, 208/240/480V 3-phase; delivers consistent power for a wide range of industrial applications, ensuring reliable operation for high-demand tasks.

Isuzu 4HK1X Diesel Engine– Tier 4 Final / CARB

152.3 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Fuel Tanks

Enables quick, seamless switching between fuel sources for efficient fuel management.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air-bending dampers minimize noise for quieter, more professional operation.

Specifications

Dimensions (L x W x H)120” x 48.8” x 59.1” (3050 x 1240 x 1500mm)
Unit dry weight6592 lbs (2990kg)
Make, model and typeISUZU 4HK1X
Emission certificationUS EPA Tier4 Final
Design featuresDirect injection, Turbocharged, DOC and SCR
Displacement316 cu.in. (5,193L)
Continuous rated output152.3hp (113.6kW) @1800rpm (60Hz)
Starting systemElectric 12V DC
Internal fuel capacity171.7gal (650L)
Fuel consumption, full load7.1gal/hr (26.9L/hr)
Fuel consumption, 3/4 load5.5gal/hr (20.7L/hr)
Fuel consumption, 1/2 load3.9gal/hr (14.7L/hr)
Fuel consumption, 1/4 load2.1gal/hr (9.1L/hr)
Total coolant capacity8.2gal (31L)
Total oil capacity / oil class6.2gal (23.5L)
DEF tank capacity7.4gal x 2 (28L x 2)
dB(A) 165 dB(A)
dB(A) 266 dB(A)

1 Sound level (No Load at 23 feet)

2 Sound level (Full Load at 23 feet)
