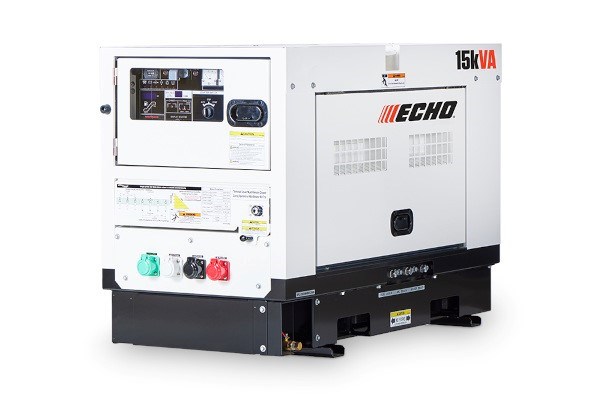

Echo DGK15F

Double tap to zoom



Features

POWERFUL. EFFICIENT. JOBSITE READY

Kubota D902 Engine – Tier 4 Final / CAR

Trusted industrial-grade performance with low emissions and EPA/CARB Tier 4 Final certification.

15KVA Output

120/240V 1-phase, 208/240V 3-phase; Powers larger tools and equipment with consistent, reliable performance.

9-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Tanks

Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air bending dampers reduce sound for quieter performance on any site.

Specifications

Dimensions (L x W x H)51.6" x 25.2" x 35.2" (1310 x 640 x 895mm)
Unit dry weight926 lbs. (420 kg)
Make, model and typeKubota D902, 3 cylinder
Emission certificationUS EPA Tier 4 Final
Design featuresIndirect Injection
Displacement54.8 cu. in. (0.898 L)
Continuous rated output20.7 hp @ 3600 rpm
Starting systemElectric 12V DC
Internal fuel capacity9.62 gallons (36.4L)
Fuel consumption, full load1.24 gal./hr (4.7L/hr)
Fuel consumption, 3/4 load1.03 gal./hr (3.9L/hr)
Fuel consumption, 1/2 load0.85 gal./hr (3.2L/hr)
Fuel consumption, 1/4 load0.66 gal./hr (2.5L/hr)
Total coolant capacity1.06 gallons (4L)
Total oil capacity / oil class0.95 gal. (3.6 L)
dB(A) 165 dB(A)
dB(A) 267 dB(A)
