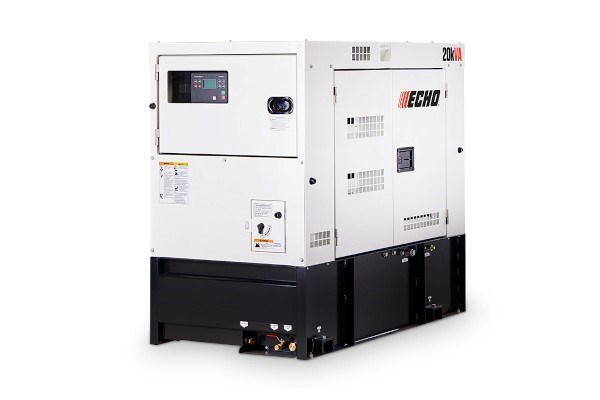

Echo DGK20FS

Double tap to zoom

Isuzu 4LE2T Engine – Tier 4 Final / CAR

Powerful, industrial-grade performance with low-emission, Tier 4 Final / CARB compliance.

20kW Single-Phase Output

120/240V 1-phase; Ideal for high-demand tools, equipment, or site backup needs.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Tanks

Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air bending dampers reduce sound for quieter performance on any site.

Dimensions (L x W x H)	63” x 33” x 55” (1603 x 850 x 1400mm)
Unit dry weight	1929 lbs (875kg)
Make, model and type	Isuzu 4LE2T, 4 cylinder
Emission certification	US EPA Tier 4 Final
Design features	Direct Injection, Turbocharged
Displacement	133 cu. in. (2.179 L)
Continuous rated output	33 hp @ 1800 rpm
Starting system	Electric 12V DC
Internal fuel capacity	51.5 gallons (195L)
Fuel consumption, full load	1.6 gal./hr (6.1L/hr)
Fuel consumption, 3/4 load	1.2 gal./hr (4.64L/hr)
Fuel consumption, 1/2 load	0.9 gal./hr (3.6L/hr)
Fuel consumption, 1/4 load	0.7 gal./hr (2.5L/hr)
Total coolant capacity	2.6 gallons (10L)
Total oil capacity / oil class	2.7 gallons (10.4L)
dB(A) ¹	62 dB(A)

¹ Sound level (No Load at 23 feet)
