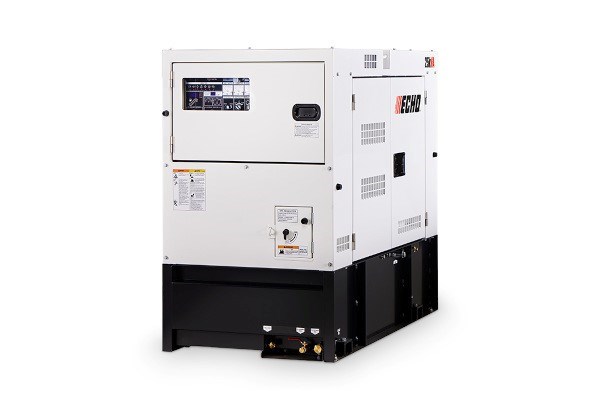

Echo DGK25F

Double tap to zoom



Features

POWERFUL. PORTABLE. JOBSITE READY.

Simul-Phase™ Technology

A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.

Priority Trip Breakers

Equipped with separate breakers for 1-phase and 3-phase loads. User selectable priority for 1-phase and/or 3-phase in case of overload situation.

25kVA High-Capacity Output

120/139/240V 1-phase, 208/240/480V 3-phase; Powers multiple applications with ease.

Isuzu 4LE2T Diesel Engine– Tier 4 Final / CAR

33hp at 1,800 rpm; durable, fuel-efficient performance with Tier 4 Final emissions compliance.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Tanks

Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air-bending dampers minimize noise for quieter, more professional operation.

Specifications

Dimensions (L x W x H)63” x 33” x 55” (1603 x 850 x 1400mm)
Unit dry weight1929 lbs (875kg)
Make, model and typeIsuzu 4LE2T, 4 cylinder
Emission certificationUS EPA Tier 4 Final
Design featuresDirect Injection, Turbocharged
Displacement133 cu. in. (2.179 L)
Continuous rated output33 hp @ 1800 rpm
Starting systemElectric 12V DC
Internal fuel capacity51.5 gallons (195L)
Fuel consumption, full load1.6 gal./hr (6.1L/hr)
Fuel consumption, 3/4 load1.2 gal./hr (4.64L/hr)
Fuel consumption, 1/2 load0.9 gal./hr (3.6L/hr)
Fuel consumption, 1/4 load0.7 gal./hr (2.5L/hr)
Total coolant capacity2.6 gallons (10L)
Total oil capacity / oil class3.0 gal. (11.5L)
dB(A) 159 dB(A)
dB(A) 262 dB(A)

1 Sound level (No Load at 23 feet)

2 Sound level (Full Load at 23 feet)
