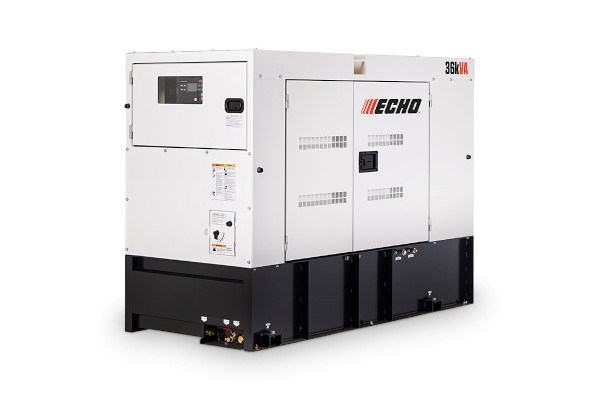

Echo DGK36FS

Double tap to zoom

36kW Single-Phase Output

120/240V single phase; Delivers powerful, steady energy for large-scale tools and equipment.

Isuzu 4LE2X Diesel Engine– Tier 4 Final / CAR

59 hp at 1,800 rpm; industry-trusted engine designed for durability and fuel efficiency.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Fuel Tanks

Enables quick, seamless switching between fuel sources for efficient fuel management.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air-bending dampers minimize noise for quieter, more professional operation.

Dimensions (L x W x H)	83” x 37” x 61” (2100 x 950 x 1550mm)
Unit dry weight	2620 lbs (1195kg)
Make, model and type	Isuzu 4LE2X, 4 cylinder
Emission certification	US EPA Tier 4 Final
Design features	Direct Injection, Turbocharged, intercooler
Displacement	133 cu. in. (2.179 L)
Continuous rated output	59 hp @ 1800 rpm
Starting system	Electric 12V DC
Internal fuel capacity	79 gallons (300L)
Fuel consumption, full load	2.8 gal./hr (10.7L/hr)
Fuel consumption, 3/4 load	2.1 gal./hr (8.2L/hr)
Fuel consumption, 1/2 load	1.5 gal./hr (5.9L/hr)
Fuel consumption, 1/4 load	0.9 gal./hr (3.8L/hr)
Total coolant capacity	2.9 gallons (11L)
Total oil capacity / oil class	3.0 gal. (11.5L)
dB(A) ¹	65 dB(A)

¹ Sound level (No Load at 23 feet)
