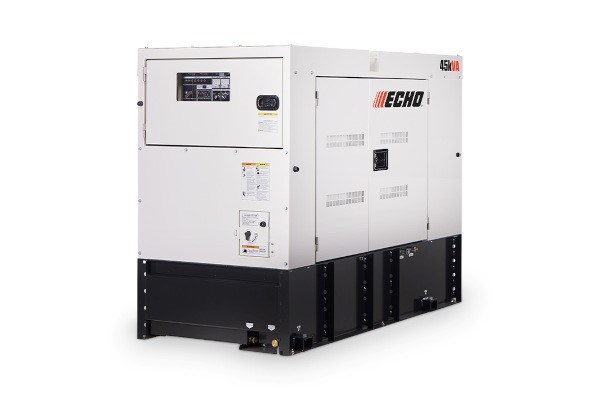

Echo DGK45F

Double tap to zoom



Features

TRUSTED POWER FOR TOUGH JOBS.

Simul-Phase™ Technology

A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.

Priority Trip Breakers

Equipped with separate breakers for 1-phase and 3-phase loads. User selectable priority for 1-phase and/or 3-phase in case of overload situation.

45kVA Output Capacity

120/139/240V 1-phase, 208/240/480V 3-phase; Provides consistent, reliable power for industrial and commercial needs.

Isuzu 4LE2X Diesel Engine – Tier 4 Final / CARB

59 hp at 1,800 rpm; built to handle tough tasks, ensuring long-lasting, high-performance operation.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Fuel Tanks

Enables quick, seamless switching between fuel sources for efficient fuel management.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air-bending dampers minimize noise for quieter, more professional operation.

Specifications

Dimensions (L x W x H)83” x 37” x 61” (2100 x 950 x 1550mm)
Unit dry weight2634 lbs (1195kg)
Make, model and typeIsuzu 4LE2X, 4 cylinder
Emission certificationUS EPA Tier 4 Final
Design featuresDirect Injection, Turbocharged, intercooler
Displacement133 cu. in. (2.179 L)
Continuous rated output59 hp @ 1800 rpm
Starting systemElectric 12V DC
Internal fuel capacity79 gallons (300L)
Fuel consumption, full load2.8 gal./hr (10.7L/hr)
Fuel consumption, 3/4 load2.1 gal./hr (8.2L/hr)
Fuel consumption, 1/2 load1.5 gal./hr (5.9L/hr)
Fuel consumption, 1/4 load0.9 gal./hr (3.8L/hr)
Total coolant capacity2.9 gallons (11L)
Total oil capacity / oil class3.0 gal. (11.5L)
dB(A) 163 dB(A)
dB(A)66 dB(A)

1 Sound level (No Load at 23 feet)

2 Sound level (Full Load at 23 feet)
