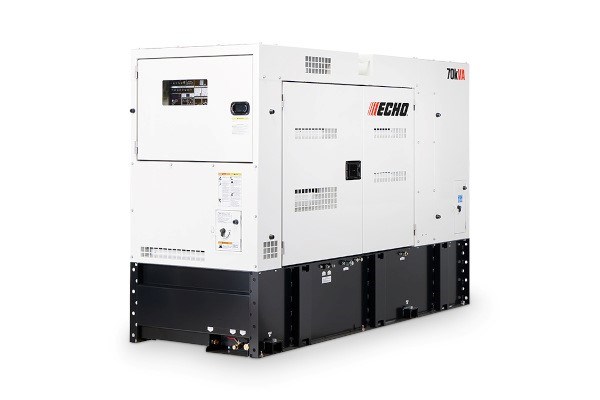

Echo DGK70F

Double tap to zoom



Features

UNSTOPPABLE POWER. TRUSTED ECHO.

Simul-Phase™ Technology

A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.

Priority Trip Breakers

Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.

S.E.T. Smart Emissions Technology™

Added protection during light or underloaded operation.

70kVA Output Capacity

120/139/240V 1-phase, 208/240/480V 3-phase; Delivers reliable, high-performance power for industrial, commercial, and large-scale applications.

Isuzu 4JJ1X Diesel Engine– Tier 4 Final / CARB

95.2 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.

24-Hour Fuel Tank

Offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Fuel Tanks

Enables quick, seamless switching between fuel sources for efficient fuel management.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air-bending dampers minimize noise for quieter, more professional operation.

Specifications

Dimensions (L x W x H)102” x 37.5” x 69” (2590 x 951 x 1751mm)
Unit dry weight3898 lbs (1754kg)
Make, model and typeIsuzu 4JJ1X 4 cylinder
Emission certificationUS EPA Tier 4 Final
Design featuresDirect Injection, Turbocharged, Intercooler, DOC and SCR
Displacement183.0 cu. in. (2.999 L)
Continuous rated output95.2 hp (71.0kW) @ 1800 rpm (60Hz)
Starting systemElectric 12V DC
Internal fuel capacity105 gallons (400L)
Fuel consumption, full load4.4 gal./hr (16.6L/hr)
Fuel consumption, 3/4 load3.4 gal./hr (13.1L/hr)
Fuel consumption, 1/2 load2.5 gal./hr (9.5L/hr)
Fuel consumption, 1/4 load1.8 gal./hr (6.4L/hr)
Total coolant capacity3.7 gallons (14.0L)
Total oil capacity / oil class4.0 gal. (15.0L)
DEF tank capacity7.4 gal. (28.OL)
dB(A) 161 dB(A)
dB(A) 262 dB(A)

1 Sound level (No Load at 23 feet)

2 Sound level (Full Load at 23 feet)
