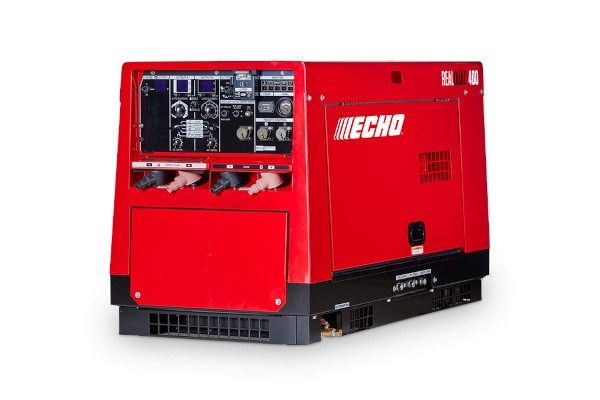

Echo DGW400DML

Double tap to zoom

5-in-1 Welding Flexibility

Tackle any job with Wire, Arc, Droop Stick, TIG, and CC Stick capabilities in one machine.

Flexible Power Output

Simul-Phase™, 3-phase, and single-phase options deliver adaptable power for a wide range of tools and jobsite demands.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Length (in./mm)	56.5/1435
Width (in./mm)	27.6/700
Height (in./mm)	33.4/848
Dry Weight (lbs/kg)	1045/474
Net Weight (lbs/kg	11459/521
Model (Manufacturer)	D902 (Kubota)
Type	Vertical, Water-Cooled 4-Cycle Diesel Engine
Displacement (cu.in. / liters)	55 / 0.898
Rated Output (hp / rpm)	23.6 / 3600
Fuel	ASTM No.2-D,S15 EPA regulation
Lubricant Oil	API Class CF or better (CJ excluded)
Fuel Tank Capacity (gal. / liters)	11.4 / 43
Lubrication Oil Volume (gal. / liters)	0.95 / 3.6 (Effective 0.45 / 1.7)
Cooling Water Volume (gal. / liters)	1.06 / 4.0 (Sub Tank Capacity 0.16 / 0.6 included)
Starting Motor Capacity (V - kW)	12 - 1.2
Charging Alternator Capacity (V - W)	12 - 150
Battery Capacity (V - Ah)	12 - 36 (46B24L)
