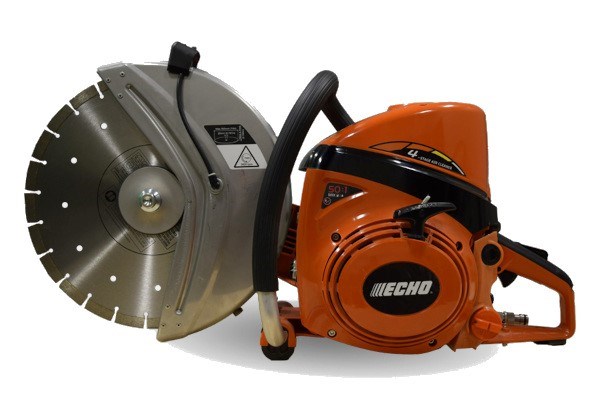

Echo CSG-7410

Double tap to zoom



Features

TOP FEATURES

  • Class-leading high-torque drive system
  • Patented 4-stage air cleaner provides the engine with clean air for long life
  • Easy starting system includes reduced effort starter and decompression valve



MAKE CUTS WITH BEST-IN-CLASS TORQUE

  • 73.5 cc professional-grade, 2-stroke engine
    For outstanding performance and durability
  • Decompression valve
    For easier starter pulling effort
  • Purge bulb
    Provides fresh fuel to carburetor
  • Reversible cutting head
    Can be moved to enable cutting near a wall or close to the ground
  • Brass water valve
    Controls flow of water
  • Abrasive wheel included
    For general cutting. Diamond wheel sold separately
  • Four-stage air filtration system
    Protects engine from harmful dust ingestion
  • Momentary stop switch
    Automatically returns to "on" position
  • Side-access belt tensioner
    For easy belt adjustment

Specifications

Engine Displacement (cc)73.5
Max. Engine Speed (rpm)9,800
Max. Spindle Speed (rpm)3,820
Drive System Ratio2.6
Arbor Size (mm)20 & 25.4
Dry Weight (lbs.)23.6
Fuel Capacity (fl. oz.)23.7
Wheel Diameter (in.)14
Start/Stop SwitchMomentary
Decompression ValveYes
Purge BulbYes
Choke w/Fast IdleYes
Max. Cutting Depth (in.)4.9
Wheel IncludedAbrasive
