Precise Yet Gentle Draper

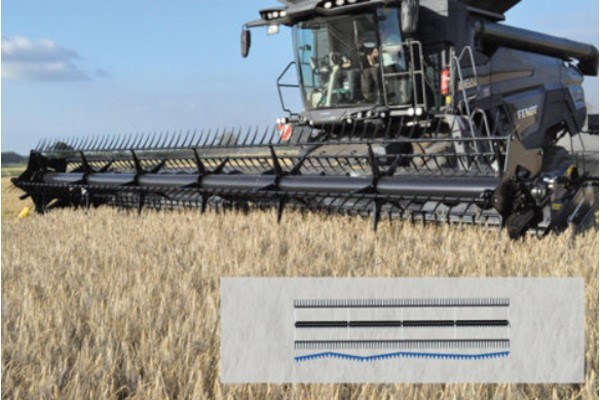

The Flex 30 is high-grade draper suitable for versatile harvesting. Equipped with a rigid frame, single-section reel, and a flexible cutter bar featuring 6" of flex range, our Integrated Air System (IAS) also comes standard on the Flex 30.

Height control sensors underneath the Flex 30 allow for easy contouring and closer harvesting to the ground - and is easily controlled from the cab through a separate terminal. Equipment options include height adjustment for grain and legumes, a variety of quick change crop dividers, and optional canola kit with cross feeding auger and vertical knives.

Available in 30 foot width only.

Features at a Glance

Geringhoff Advantages

From the frame and bodywork to the flip-over reel and cutting system, our draper heads are engineered to provide unmatched performance, reliability, countering, and flexibility in every field.

Center Knife Drive

Center knife drive divides the cutting load by half to reduce torque load for an effective and power-saving cut. The hydraulic relief system helps prevent damage to provide long lasting performance.

Flip-Over Reel

The lightweight flip-over reel feeds the harvested crop evenly and gently onto the conveyor belts. While its design allows for an unobstructed view of the middle of the cutter bar for perfect control and visibility. Reel tines are easily adjusted to accommodate changing crop conditions.

Cutting System

Utilizing the Schumacher EasyCut II, the cutting system provides durable industry-leading performance with low maintenance. Knives are mounted alternately for less wear on cutting edges and guards - which are made of spring steel making them lighter while providing higher stability.

Flexible Cutter Bar

Flexible cutter bar provides up to 6" of ground contouring travel. Six height control sensors distributed across the full width of the head allows the flexible cutter bar to cut nearly at ground level to increase yield potential.

Belts for Crop Flow

Drapers utilize lightweight and robust belts instead of heavy augers for consistent flow into the combine. Deep belts are gentle with crops while our center belt - the widest on the market - increases crop flow in all conditions. Adjustable belt speed allows for quick and easy transition to different crop conditions.

Narrow End Panels

Due to the center knife drive, the end panels have a width of only 4 inches which protects the standing crop at the cutting edge and losses are averted. Narrow end panels also make the wings lighter for quicker adjustment and closer ground following.

Hydraulic Gauge Wheels

Precisely designed to be lightweight but sturdy, our draper frames are limber enough to roll on the ground yet tough enough to handle the demands of harvest. The hydraulic gauge wheels lift and lower the frame to follow the contours of the field and leaves behind a consistent stubble height.

In-Cab Controls

A separate CG terminal allows the combine operator to easily monitor and change settings, like belt speed, from within the cab. Preventing harvest downtime and increasing harvest efficiency.
