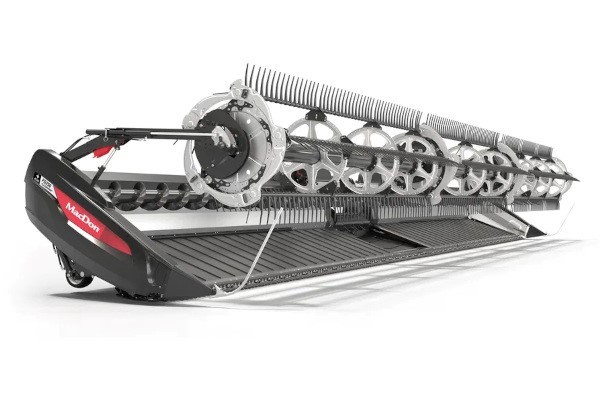

MacDon FD2 Plus 50'

New Products / MacDon / Combine Headers / FlexDraper® Headers / FD2 PLUS Series FlexDraper® / FD2 Plus 50'

Double tap to zoom

Features
Specifications

Features

Sorry, currently there are no features but check back with us later.

Specifications

FD2 PLUS FlexDraper® Specifications
Size*	15.2 m (50')
Weight** Single Knife Drive without FM200	-
Weight** Double Knife Drive without FM200	-
Weight ** Double Knife Drive with Triple Reel without FM200	3,979 kg (8,769 lbs)
Knife: Type / Drive / Speed	Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es) / 1200-1400/1500 spm, varies depending on header size
Guard Types Available	ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down
Reel: Type / Drive / Speed / Fingers	Pick-up reel, five bats, two-piece (double) or three-piece (triple), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 290 mm (11.4") length, wear-resistant HD plastic, 102 mm (4") spacing
Reel Segments	Triple
Conveyor: Type / Drive / Speed	1270 mm (50") deep, reversible, rubber skim-coated drapers, double V-guide with tracking, integral seal on leading edge / 0 to 209 m/min (0 to 687 ft/min)
Standard Features	Fits most current model combines, hydraulic fore-aft reel positioner, hydraulic header tilt, in-cab side draper speed control, auto-header height with header angle and ground pressure indicators, full width cutterbar poly wear plates and six poly skid shoes with steel support structure
Field-Installed Options	EasyMove™ Transport System, ContourMax™ Contour Wheels, Upper Cross Auger, VertiBlade™ Vertical Knife, stabilizer wheels, lateral tilt automatic header height control
*Product size availability varies by market.
**Listed weights are for basic header configuration. Weights may vary with additional performance options. See your MacDon dealer for details.

FD2 PLUS Wing Flex Range
	Standard (Factory) Range	Increased Range*
FD230 PLUS Double Reel	165 mm (6.5") up & 130 mm (5") down	165 mm (6.5") up & 165 mm [6.5") down
FD235 PLUS Double Reel	205 mm (8") up & 130 mm (5") down	205 mm (8") up & 205 mm (8") down
FD241 PLUS Double Reel	205 mm (8") up & 130 mm (5") down	205 mm (8") up & 205 mm (8") down
FD240 PLUS Triple Reel	205 mm (8") up & 205 mm (8") down
FD245 PLUS Triple Reel	216 mm (8.5") up & 216 mm (8.5") down
FD250 PLUS Triple Reel	216 mm (8.5") up & 216 mm (8.5") down
*The flex range can be increased by removing the flex limiter, however a greater reel to cutterbar clearance is required. This is a customer configuration; instructions in Op Manual

FD2 PLUS Total Flex Range (Includes Lateral Float)*
	Total Flex Range
FD230 PLUS Double Reel	696.98 mm (27.44")
FD235 PLUS Double Reel	833.88 mm (32.83")
FD240 PLUS Triple Reel	894.84 mm (35.23")
FD241 PLUS Double Reel	907.54 mm (35.73")
FD245 PLUS Triple Reel	981.20 mm (38.63")
FD250 PLUS Triple Reel	1042.16 mm (41.03")
*Independent of combine

FM200 Float Module Specifications
	Center Draper	Feed Auger
Weight	1083 - 1171 kg (2387 - 2581 lb), varies by combine configuration
Size	2000 mm (78.7") width	1630 mm (64.1") width
Type	Hydraulic drive (reversible), self tracking rubber coated polyester fabric feed draper with rubber slats	Mechanical drive (reversible), removable retracting fingers with bolt on flighting
Speed	107-122 m/min (350-400 ft/min), varies with combine brand	191 - 195 rpm, varies with combine brand
Header Floatation: Type/Vertical Range/Lateral Range (Tilt)	2 pairs of coil springs, independent adjustment, transport lock-out / 178 mm (7") / 4.8 degrees
